High Temperature Filter

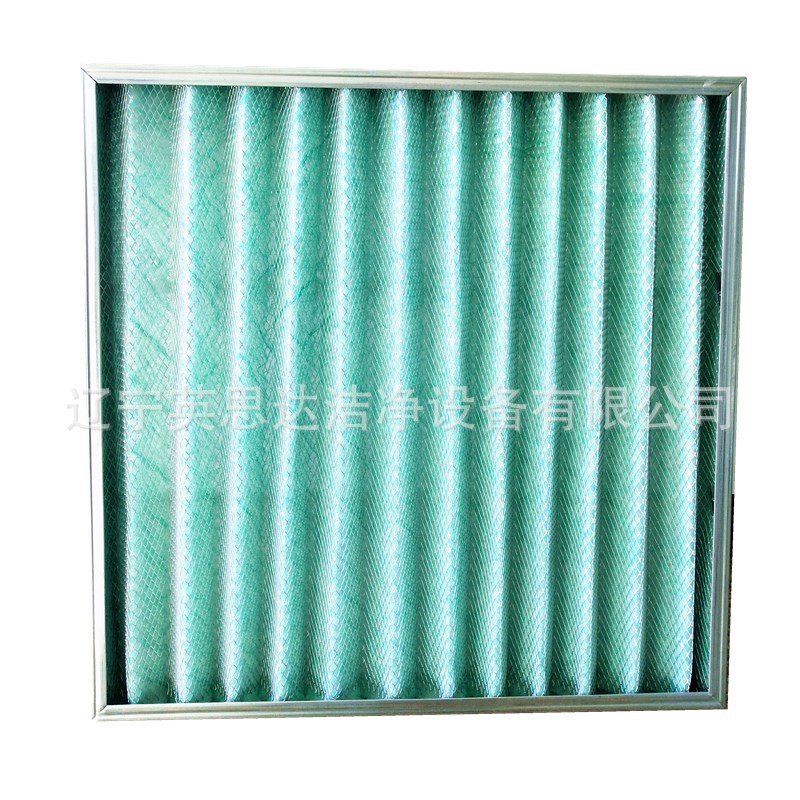

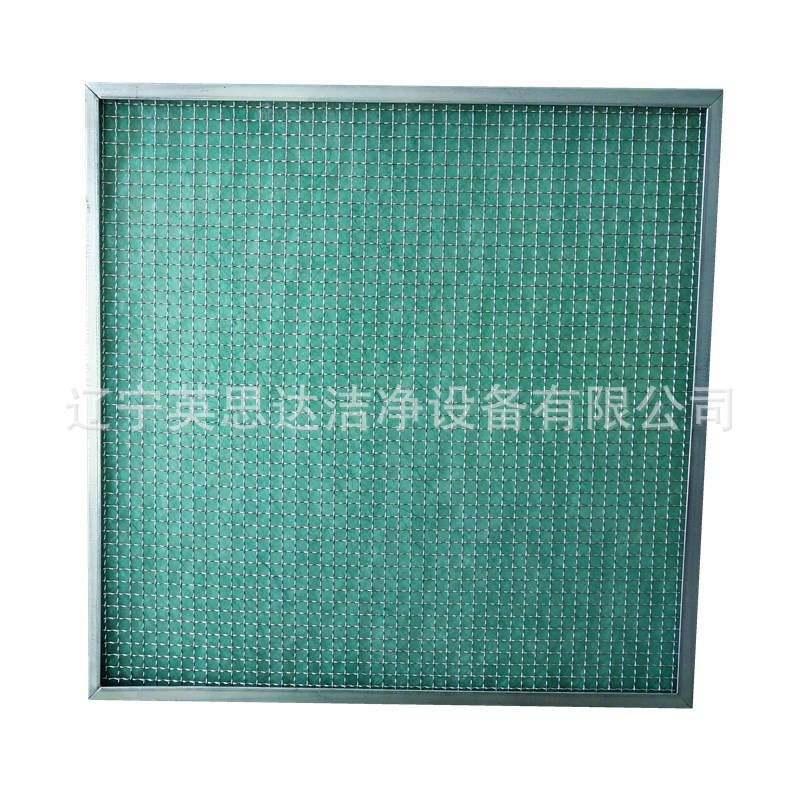

Panit stop panel filter , paint arrestor filter plate

EN779 Class	G3
Average Arrestance	80 % ≤ E≤ 90%
Final Pressure Drop	250 Pa
Max Operating Temperature	80℃
Relative Humidity Resistance	up to 70%
Frame	Humidity resistant board, metal on demand

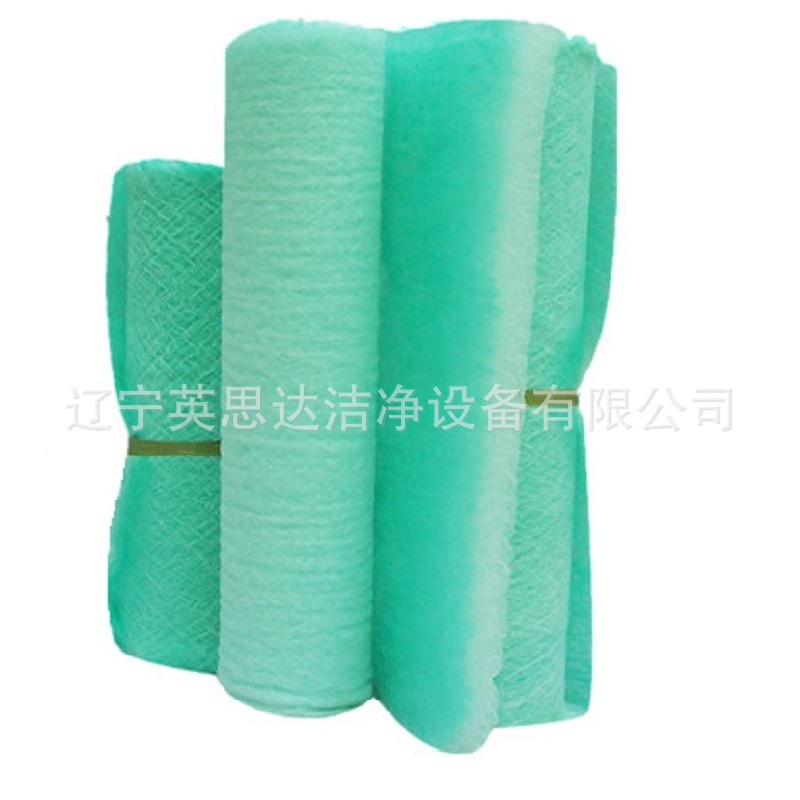

Media	fiberglass Felt

Efficiency	Size	Media area	Airflow Capacity m3/h @ Resistance Pa
	mm	㎡	2.5m/sec	Pa	3.2m/sec	Pa
G3	500x500x24	0.25	2400	35	3000	50
G3	500x625x24	0.3	3000	35	3700	50
G3	592x287x24	0.17	1700	35	2100	50
G3	490x592x24	0.29	2800	35	3500	50
G3	592x592x24	0.35	3400	35	4200	50
G4	500x500x45	0.25	2400	45	3000	65
G4	500x625x45	0.3	3000	45	3700	65
G4	592x287x45	0.17	1700	45	2100	65
G4	490x592x45	0.29	2800	45	3500	65
G4	592x592x45	0.35	3400	45	4200	65
G4	500x500x95	1.2	2400	55	3000	75
G4	500x625x95	1.4	3000	55	3700	75
G4	592x287x95	0.8	1700	55	2100	75
G4	490x592x95	1.2	2800	55	3500	75
G4	592x592x95	1.6	3400	55	4200	75
