Filter media and material

  • Fiberglass Paint stop
  • Fiberglass Paint stop
  • Fiberglass Paint stop
  • Fiberglass Paint stop
Fiberglass Paint stop Fiberglass Paint stop Fiberglass Paint stop Fiberglass Paint stop

Fiberglass Paint stop

  • paint stop
  • paint arrestor
  • paint fog felt
  • fiberglass felt

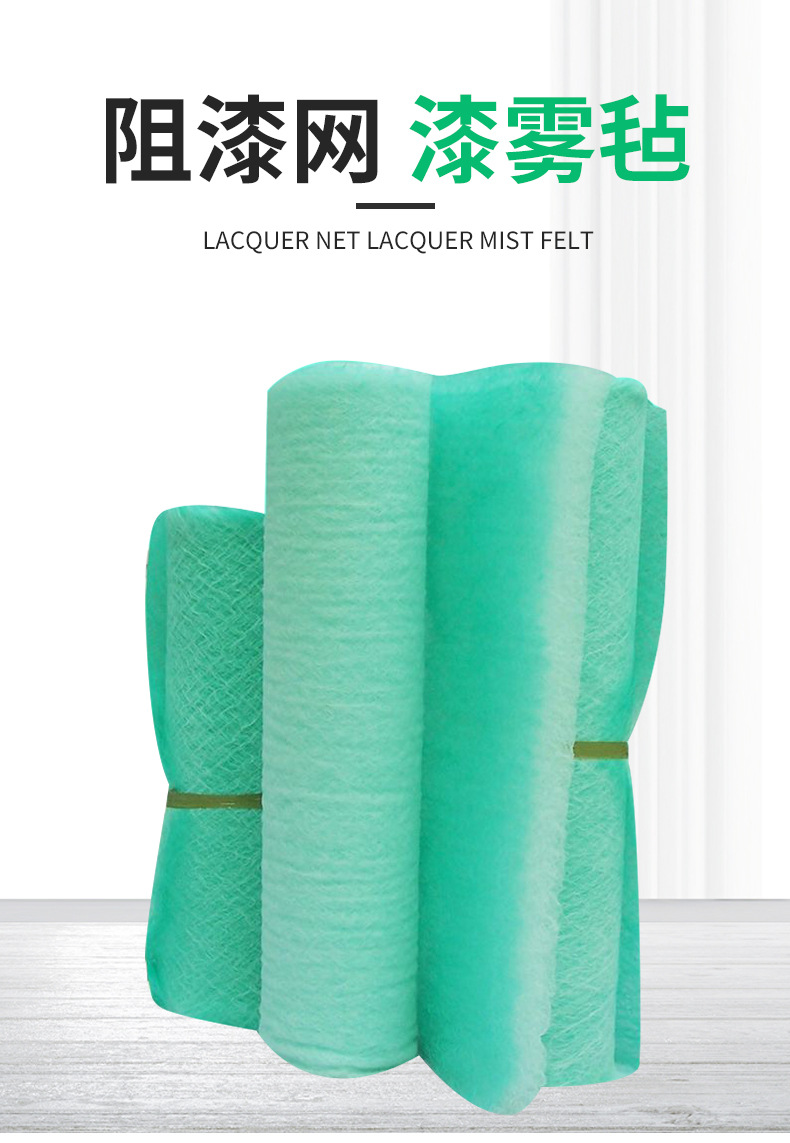

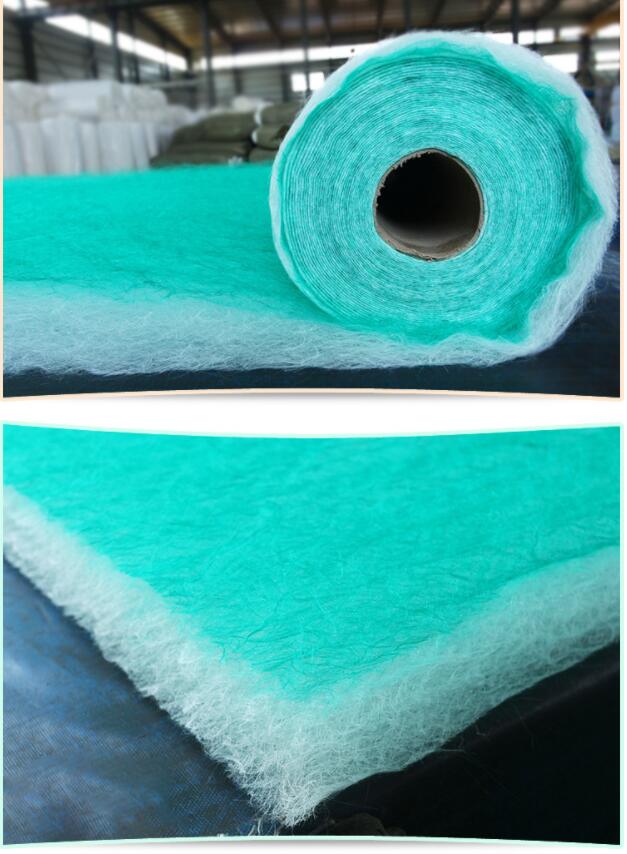

  • Product description: paint stop, paint arrestor, paint fog felt, fiberglass felt
  • INQUIRY
Floor filter 1" Floor filter 2" Floor filter 3" Floor filter 4"
Weight/ 重量: 160-180gr/sqm 220-240gr/sqm 270gr/sqm 340g/sqm
Thickness/厚度: 30mm 50mm 70mm 100mm
Air Flow Rate/风量: 3780m3/h 3280m3/h 3780m3/h 4150m3/h
Initial Resistance初阻: 15pa 15pa 15pa 20Pa
Final Resistance终阻: 180pa 230pa 250pa 250Pa
Medium Arrestance计重: 0.766 0.766 76.60% 95.0%
Air Velocity风速: 1.05m/s 1.5m/s 1.05m/s 0.65m/s
Dust Holding容尘: 2430gr/sqm 3930gr/sqm 4330gr/sqm 7350G/sqm
Max Temperature温度: 180C 180C 180C 180C
Filtration Class效率: G2(DIN 24185) G3(DIN 24185) G3(DIN 24185) G4 (DIN 24185)
Flame Resistance阻燃: F-1(DIN 53438) F-1(DIN 53438) F-1(DIN 53438) F-1(DIN 53438)
